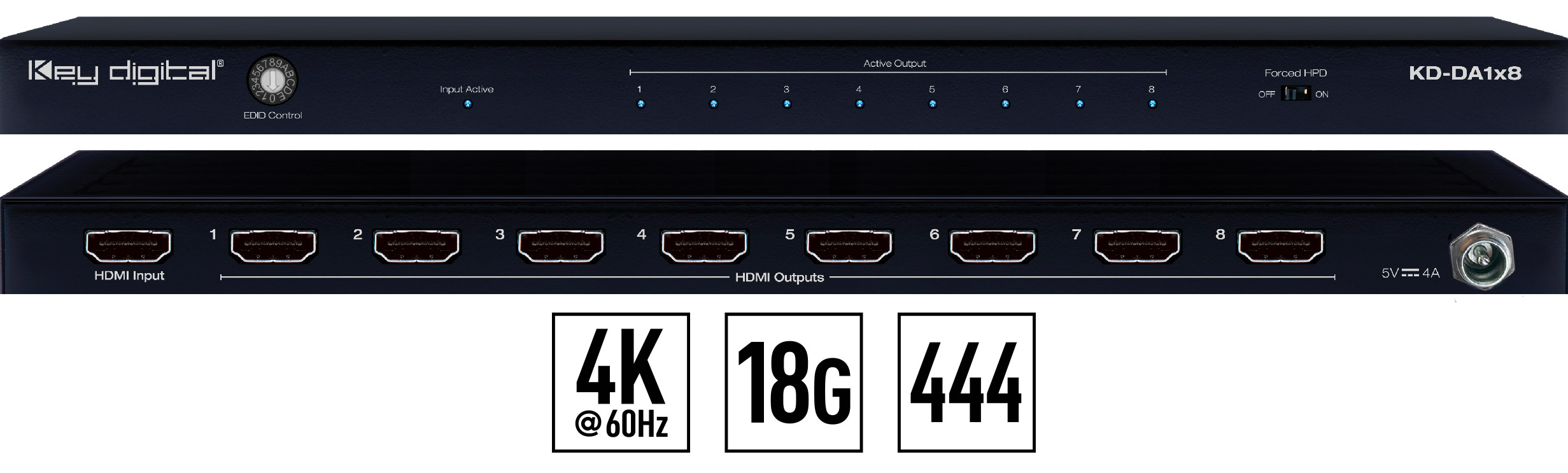

KD-DA1x8
8 Output HDMI Splitter Distribution Amp
- Feeds video source to 8 HDMI displays
- Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD
- Repairs HDMI signals for integration with long HDMI cables
- Slim chassis for space-effective installation
Sales Team is here to help you with an integration question or to find a distributor.
INTRODUCTION
KD-DA1x8 HDMI Distribution Amplifier is designed and engineered to offer the best in quality, performance, and reliability, while providing a cost-effective, ultra-slim HDMI distribution solution. The KD-DA1x8 provides one input to multiple output HDMI distribution without signal degradation. KD-DA1x8 HDMI Distribution Amp supports all SD, HD, VESA and Ultra HD/4K video standards, including 4K, 1080p/60, 1920×1200 and support of HDCP 2.2 and HDR10.
FEATURES
- HDMI Signal Distribution: 1 HDMI Source to 8 HDMI Displays
- Ultra HD/4K Resolution: 4096×2160 or 3840×2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- Resolution Support: SD, HD, and VESA up to UHD/4K
- Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
- HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI
ADDITIONAL FEATURES
- HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
- Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- I2C Communication: EDID and HDCP buffering from Display to Source
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
TECHNICAL DOCUMENTS
VIDEOS
IMAGES AND DIAGRAMS
SPECIFICATIONS
Technical
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits/color
- DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
- KD-DA1x2/1×4 Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
- KD-DA1x8 Power Supply: KD-PS5V4A, 5V/4A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KD-DA1x2 – 4.9” x 2.5” x .55” KD-DA1x4 – 6.9” x 3.25” x .55” KD-DA1x8 – 10.75” x 4.01” x 0.67”
- Packaging Dimensions: KD-DA1x2 – 6.5” x 4.3” x 3.4” KD-DA1x4 – 8.25” x 4.75” x 3.6” KD-DA1x8 – 15.7” x 5.3” x 2.28”
- Product Weight: KD-DA1x2 – 0.5 lb KD-DA1x4 – 0.8 lb KD-DA1x8 – 1.5 lb
- Shipping Weight: KD-DA1x2 – 0.9 lb KD-DA1x4 – 1.4 lb KD-DA1x8 – 2.0 lb
ACCESSORIES
- Power Supply (qty 1) 5V/4A, 20W, wall type, model KDSP5V4ASC
- Mounting Brackets
