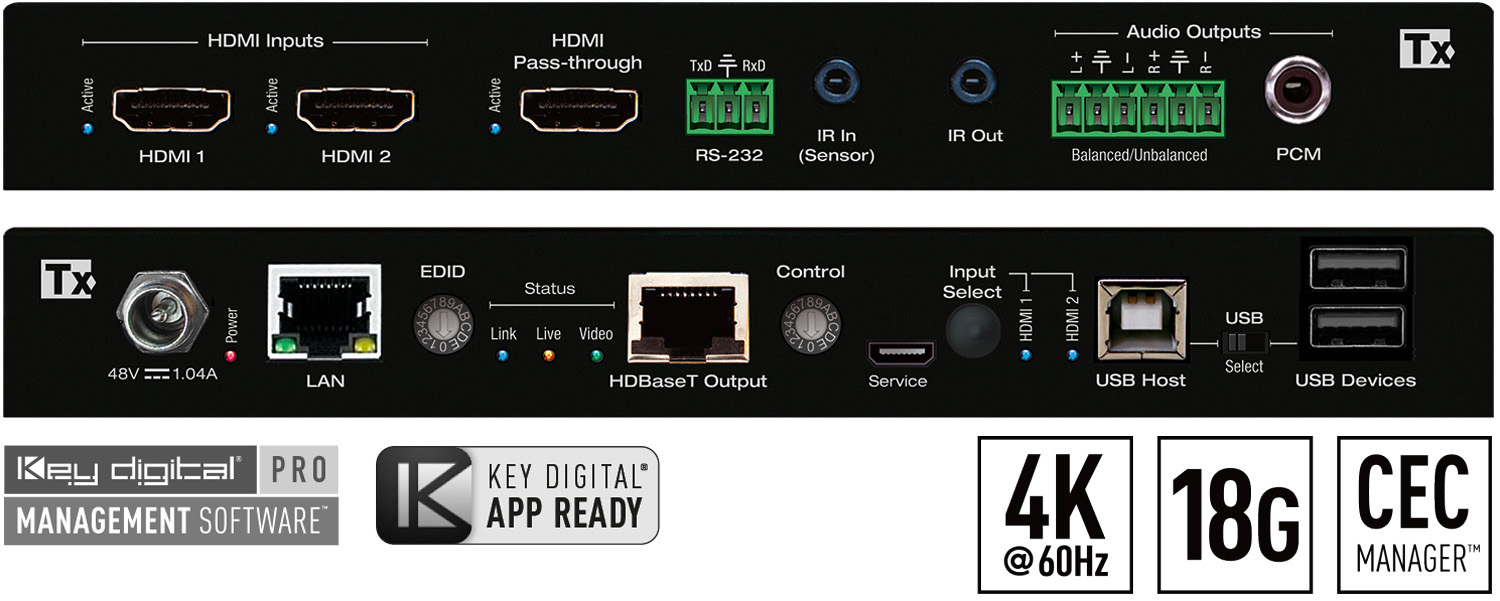

KD-PS22UTx

INTRODUCTION

KD-PS22UTx is an HDBaseT transmitter + presentation switcher + soft-codec enabling interface with two HDMI inputs, USB Host or Device connections, and HDMI pass-through output for an additional display. KD-PS22UTx is ideal for professional video installations in conference rooms, classrooms, lecture halls, auditoriums, as well as audio return (ARC) applications. KD-PS22UTx and its Receivers (sold separately) have audio de-embedding for ease of integration with audio systems. KD-PS22UTx features push-button or TCP/IP switching selection of the desired source and is KD-App Ready. In addition to AV signals, KD-PS22UTx extends USB 2.0, IR, RS-232, and LAN for controlling remotely located equipment.

FEATURES

• Presentation Switching: 2 HDMI Source selection by push button or IP control
  Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switchers
• Video Conference USB Hub: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• KDPlug & Present: Add KD-CX800 to build programming-free automation system for room display on / off, screen control, auto switching, KD-CAMUSB PTZ camera, KD-AMP220 amp with mic mix, and common video source control
• Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• ARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Unit powered by Rx/Presentation Switch unit
• Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft (Long Range Mode)
• Long Range Mode: Extends 1080p signals up to 152m (500 ft.) using CAT5e/6 (UHD/4K not supported)
• Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
• Control System Support: Key Digital® App Ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API

ADDITIONAL FEATURES

• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device0G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
