4 Input 2 Mirrored Output Presentation Switch

  • HDMI and HDBaseT inputs for integration with Key Digital wallplate transmitter
  • Auto Switching selects a newly connected source and moves away from a newly disconneced source
  • Mirrored HDMI and HDBaseT output for Presenter’s confidence monitor
  • Part of a complete AV singal management solution for conference spaces.

Sales Team is here to help you with an integration question or to find a distributor.

INTRODUCTION


Key Digital® KD-PS42 is a 4K/18G KD-App Ready Presentation Switcher kit with CEC Manager™, auto switching, and audio de-embedding creating a user-friendly, simplified presentation system. KD-PS42 features three HDMI and one HDBaseT input which integrates natively with Key Digital wall plate HDBaseT transmitters. Mirrored HDMI and HDBaseT outputs enable audience + presenter views and the HDBaseT output marries in with the included KD-X40MRx for integrating monitors or projectors up to 40m / 131ft away when the selected source is outputting 4K/UHD (up to 70m / 230ft at 1080p). Designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more, KD-PS42 enables multiple video sources to be displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio de-embed ports feed audio of the selected source into an amplifier, DSP, or sound bar. Integrating KD-PS42 with KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control. Key Digital CEC Manager™ enables basic controls of the connected displays for a simplistic all-in-one integration system. KD-PS42 presentation switcher supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-PS42 can also be controlled via trigger voltage and features status monitoring LEDs.



FEATURES


  • Presentation Switcher Kit: Includes KD-PS42 and KD-X40MRx. Add KD-X2x1WDTx or KD-2x1WVTX wall plate HDBaseT transmitter for plug-in on walls, floor and table boxes
  • Presentation Switching: 3 HDMI, 1 HDBaseT source selection by push button, IP, RS-232, IR, auto switching, or trigger control
  • Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • CEC Manager™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient
  • Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors

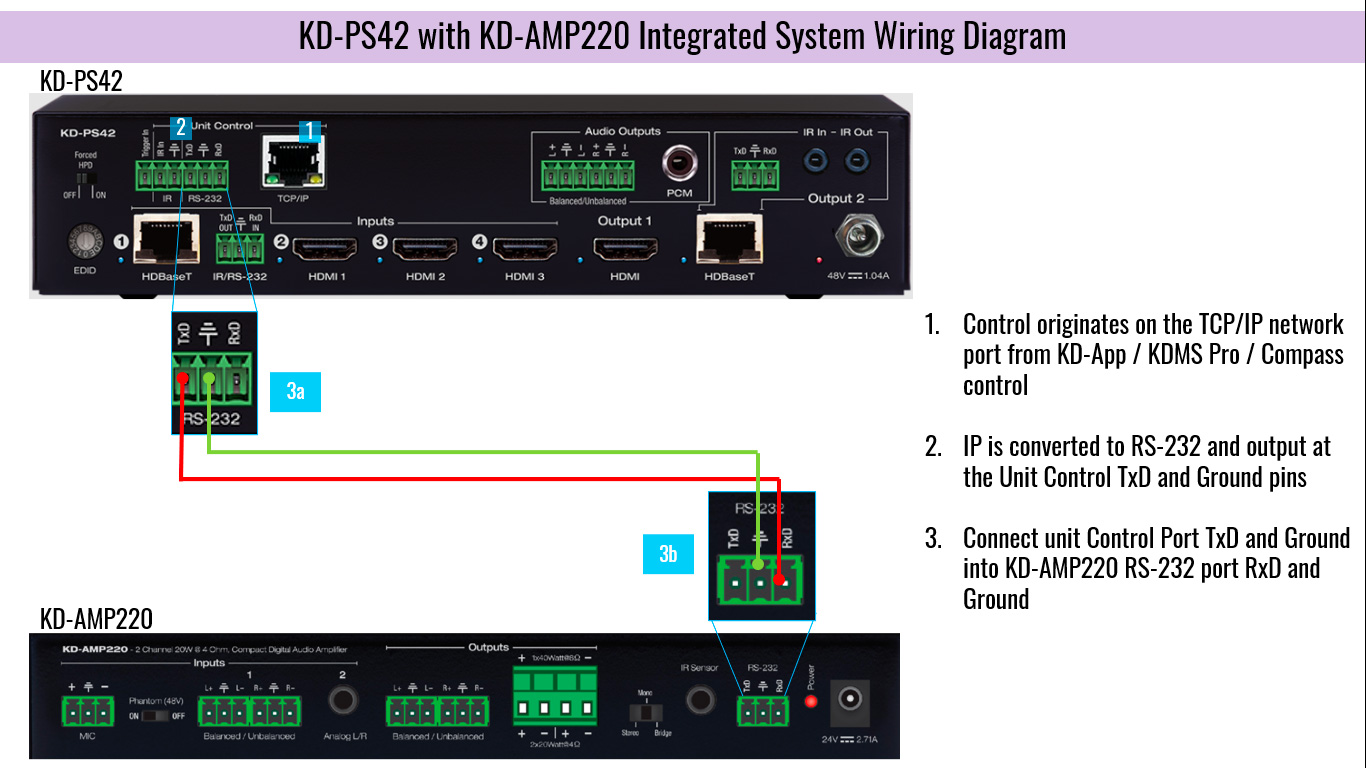

  • KD-AMP220 Control Mode: Command forward to KD-Amp220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-PS42
  • Installation: Half-rack width with rack mounting ears included
    Signal Extension on HDBaseT Input and Output: 4K/UHD (18G) up to 40m / 131ft, 1080p up to 70m / 230ft
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
  • Surround Sound Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby TrueHD®, Dolby Atmos®
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™

ADDITIONAL FEATURES


  • HDR10: More life-like images through a greater range of luminance levels
  • Resolution Support: Supports SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
  • TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
  • Control System Support: Key Digital® App ready. Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

SPECIFICATIONS


Technical

  • AV Inputs: 1x HDBaseT RJ45, 3x HDMI
  • AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
    RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
  • Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
  • RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
  • IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
  • RS-232 Connector: 3-pin phoenix terminal

General

  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black metal
  • Product Dimensions: 8.27 x 6.42 x 1.75” (210 x 163 x 44.4mm)
  • Product Weight: Weight: 3.5 lbs / 1.59kg
  • Packaging Dimensions: 15.16 x 9.10 x 3.94 (385 x 230 x 100 mm)
  • Packaging Weight: 11.0 lbs / 5kg

ACCESSORIES

  • Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
  • Operation User Manual (qty 1)
  • Remote Control: KD-RMPS (qty 1) includes battery
  • Rack Ear Mount of PS42 (qty 2)
  • Rack Ear Mount Screw of PS42 (qty 4)
  • Half Rack Ear Mount of PS42 (qty1)
  • Table Top Ear Mount of PS42 (qty 2)
  • Table Top Ear Mount screw of PS42 (qty 4)
  • RX Extender (KD-X40MRX) (qty 1)
  • Wall Ear Mount of X40MRX (qty 2)
  • Wall Ear Mount screw of X40MRX (qty 4)
  • 6 Pos. Blue Color Terminal Block Plug (F73-5-30600060) (qty 1)
  • 6 Pos. Green Color Terminal Block Plug (F73-5-30600050) (qty 1)
  • 3 Pos. Green Color Terminal Block Plug (F73-5-30300050) (qty 2)
  • 6ft USB B to USB A (USB 2.0) Data Cable (qty 1)
  • 6ft Micro USB to USB A (USB 2.0) Data Cable (qty 1)
  • IR Emitter (3.5mm mono type) (qty 1) Key Digital
  • IR Sensor (3.5mm stereo type) (qty 1) Key Digital
