KD-VCS500
VGA to HDMI Converter Scaler
- Converts VGA video and analog audio to digital HDMI video and audio
- Embeds incoming analog audio onto the HDMI output
- Upscales incoming signal to 720p or 1080p HDMI output
- Wide variety of supported video resolutions on VGA input
Sales Team is here to help you with an integration question or to find a distributor.
INTRODUCTION
VGA Analog to Digital Video Converter & Scaler. Accommodates legacy source connectivity by converting and scaling VGA video and analog audio to digital HDMI video and audio.
FEATURES
- Converts: VGA video and analog audio to digital HDMI video and audio
- Embeds: Incoming analog audio onto the HDMI output
- Up-scales: VGA resolutions to 720p or 1080p
- Supports the following VGA resolutions: 640×480@60, 800×600@60, 1024×768@60, 1152×864@60Hz, 1280×720@60, 1280×768@60, 1280×800@60, 1280×960@60, 1360×768@60, 1366×768@60, 1280×960@60, 1280×1024@60, 1440×900@60/75, 1600×1050@60, 1680×1050@60, 1600×1200@60, 1920×1080@60, 1920×1200@60
- Resolution Selection: Simple switching between 720p and 1080p up-scaling with dual-color LED for easy identification of resolution mode
ADDITIONAL FEATURES
- HDMI® and HDCP Licensing: Fully licensed and compatible with HDMI and HDCP
TECHNICAL DOCUMENTS
VIDEOS
IMAGES AND DIAGRAMS
SPECIFICATIONS
Technical

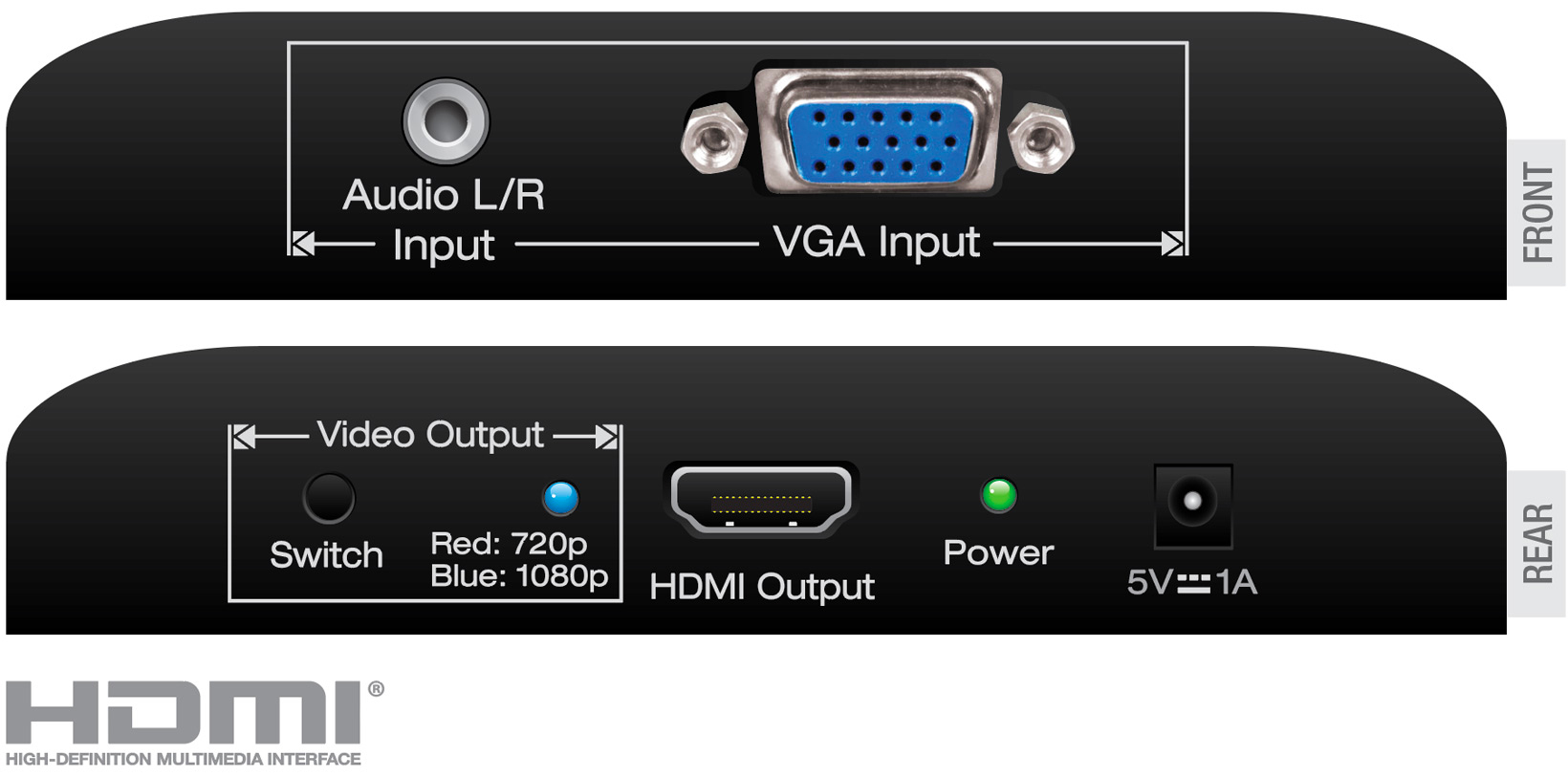

- Inputs: 1 VGA, 1 3.5mm stereo audio
- Outputs: 1 HDMI
- Control: Pushbutton
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
- Power Supply: KD-PS5V1A, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head
General
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Plastic
- Product Dimensions: 4.68” x 2.91” x 0.9”, Weight: 0.8 lbs
- Shipping Dimensions: 7” x 5.3” x 2.6”, Weight: 1 lb
ACCESSORIES
- Power Supply (qty 1) 5V/2A, 10W, wall type, model HYY-0501000U
