HDMI Display Port over 40m CAT6 HDBaseT Wall Plate Transmitter

  • Auto Switching transmitter with HDMI and Display Port inputs
  • Integrates natively with KD-X40MRx or KD-PS42 (sold separately)
  • Receives power over CAT unit from Rx
  • Extends 4K 18Gbps signals with HDR up to 130ft / 40m and 1080p signals up to 230ft / 70m.

Sales Team is here to help you with an integration question or to find a distributor.

INTRODUCTION

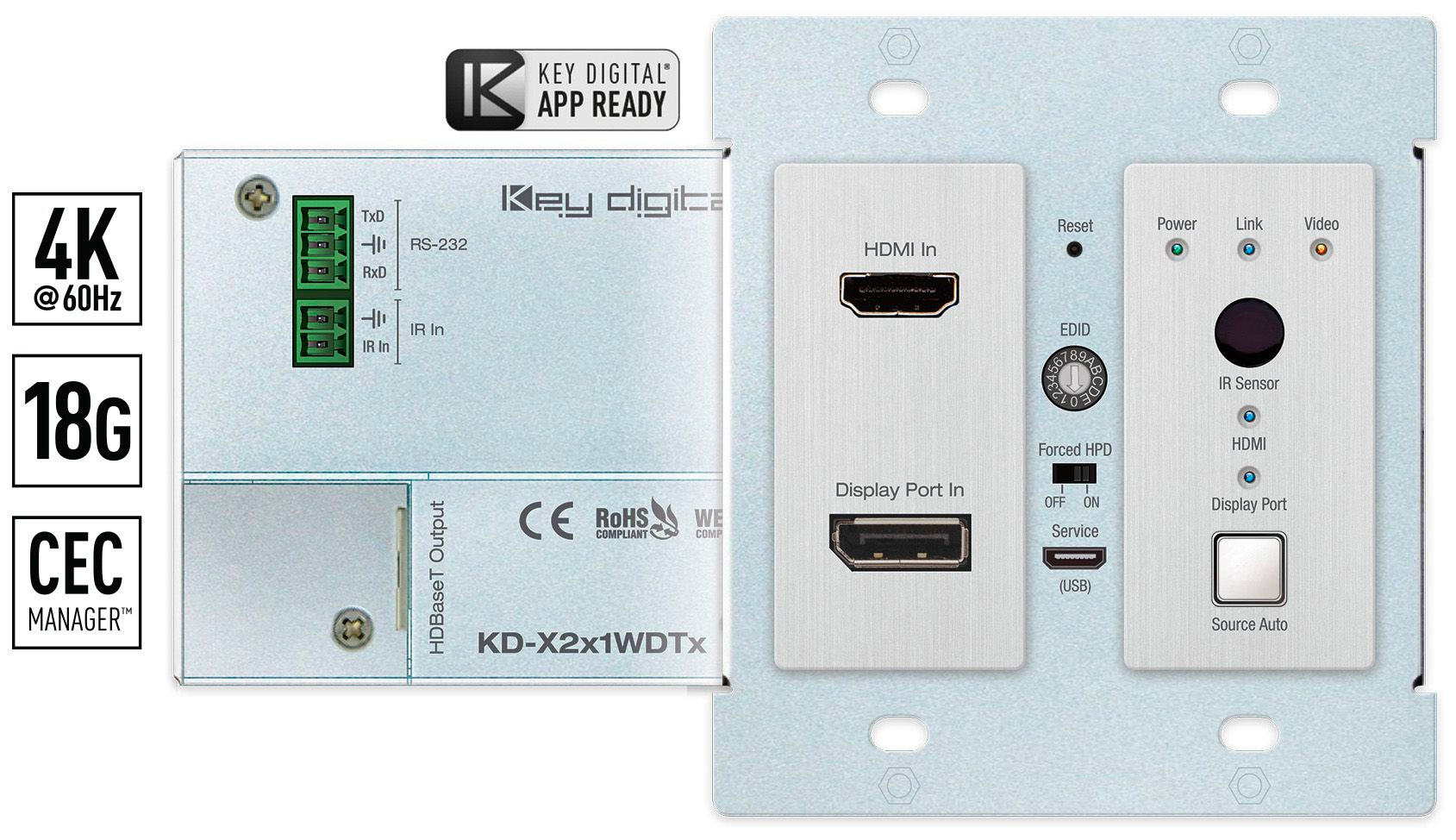

Key Digital® KD-2x1WDTx is an HDBaseT wall-plate transmitters + presentation switcher with one HDMI and one Display Port input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more. KD-X2x1WDTx’s receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. In addition to AV signals, KD-X2x1WDTx extends IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.`



FEATURES


  • Presentation Switching: 1 HDMI and 1 Display Port / VGA with Analog Audio source selected by push button
  • Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available
  • Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
  • Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
  • Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
  • Unit Control: via USB for initial installation steps
  • Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos



ADDITIONAL FEATURES


  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR: More life-like images through a greater range of luminance levels
  • Deep Color Support: Up to UHD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

SPECIFICATIONS


Technical

  • KD-X2x1WDTx Inputs: 1 HDMI, 1 Display Port, 1 IR Sensor, 1 Serial IR
  • KD-X2x1WVTx Inputs: 1 HDMI, 1 DB15, 1 3.5mm Stereo Audio, 1 IR Sensor, 1 Serial IR
  • Outputs: 1 CAT5e/6 UTP/STP, 1 Bi-Directional RS-232
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • KD-X2x1WVTx VGA Video Signal: Input Video Signal: 1.2 Volts p-p
  • KD-X2x1WVTx Analog Audio Input: 2 VRMS line audio, 3.5mm Stereo Female
  • KD-X2x1WDTX Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • HDMI Connector: Type A, 19 Pin Female
  • KD-X2x1WVTx VGA Connector: 15 Pin, Female
  • KD-X2x1WDTx Display Port Connector: Full Size, 20 Pin Female
  • RJ45 Connector: Shielded Link Connector, HDBaseT
  • IR Connectors: 1 IR Sensor, 1 2-pin phoenix terminal
  • RS-232 Connector: 3-pin phoenix terminal

General

  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Tx unit: Brushed aluminum face with black metal backing
  • Dimensions: 3.21” x 2.06” x 0.787” (Wall-plate)
  • Product Weight: 0.7 lbs
  • Packaging: 10.6” x 5.9” x 2.1” (270x150x55mm)
  • Packaging Weight: 1.3 lbs

ACCESSORIES

  • Aluminum Decora plate (qty 1)
  • Decora mounting screws with flat head (qty 4)
  • Gang-box mounting screws (qty 4)
  • Mounting bracket (qty 2)
  • 3-pin phoenix terminal (qty 1)
  • 2-pin phoenix terminal (qty 1)
