3 Input Multi-format Switcher and USB 2.0 Wall Plate 100m HDBaseT Transmitter

  • Auto Switching transmitter with HDMI, Display Port and VGA inputs
  • Integrates natively with KD-100MRx or KD-UPS52U (sold separately)
  • Extends 4K 18Gbps signals with HDR up to 328ft / 100m and 1080p signals up to 492ft / 150m
  • Part of a complete AV + USB 2.0 singal management solution for conference spaces

Sales Team is here to help you with an integration question or to find a distributor.

INTRODUCTION

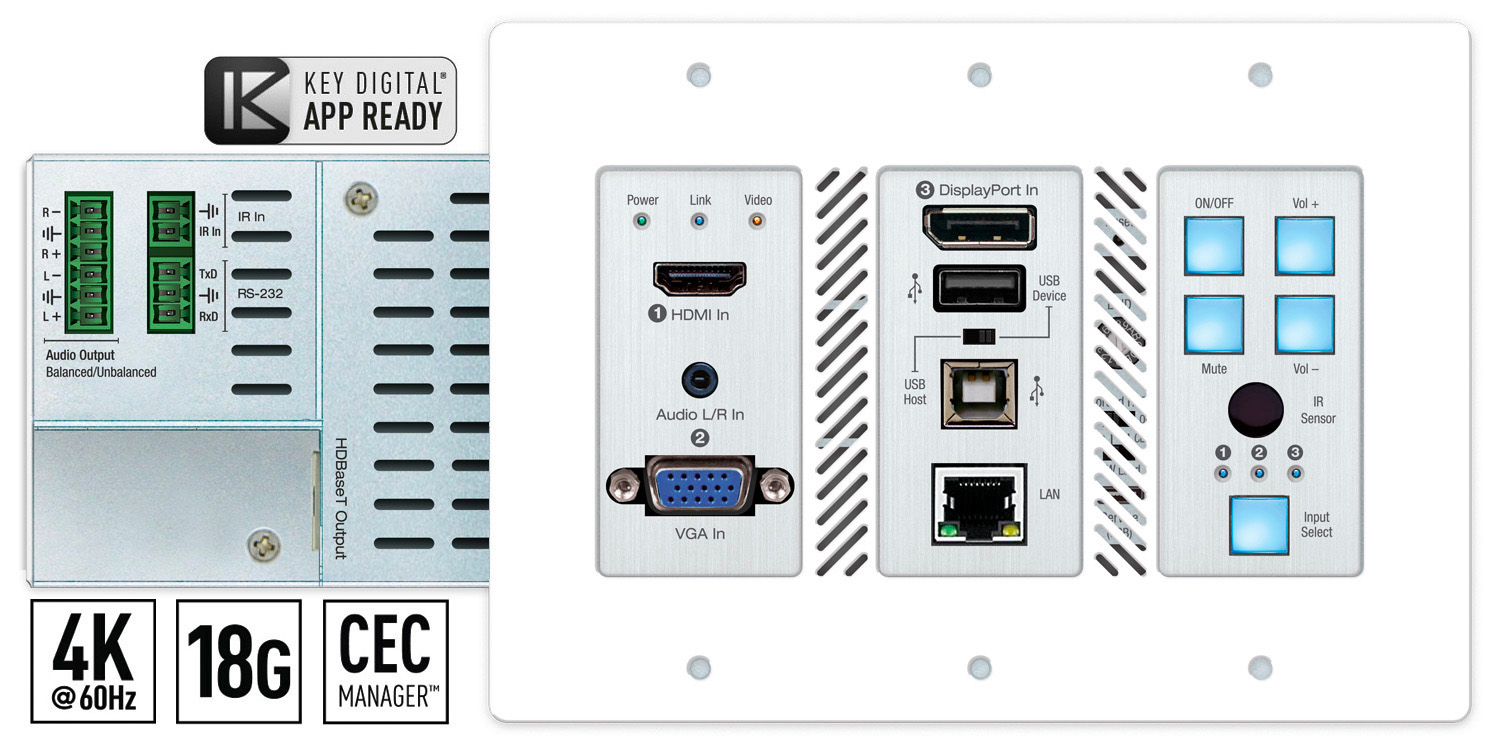

KD-3x1WUTx is an HDBaseT wall-plate transmitter + universal format switcher + soft-codec enabling interface with HDMI, Display Port, and VGA inputs, USB-A and USB-B connections. KD-X3x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more. KD-X3x1WUTx’s receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. KD-X3x1WUTx features push-button or IP switching and is KD-App Ready. CEC Display control keypad enables basic controls of the connected display or projector for a simplistic all-in-one integration. In addition to AV signals, KD-X3x1WUTx extends USB 2.0, IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.



FEATURES


  • Presentation Switching: 1 HDMI, 1 VGA+L/R, 1 Display Port, and 1 USB-C source selection by push button or IP control
  • Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
  • Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
  • Video Conference USB Hub: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
  • Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • CEC Manager™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
  • Audio De-Embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
  • ARC: Audio may be returned from the connected Rx (KD-X100MRx) unit and output on the external analog output
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
  • KDPlug & Present™ Ready: Add KD-CX800 to build a programming-free automation system
  • Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
  • Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
  • Installation: Tx unit designed for installation in standard US three-gang box
  • Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft
  • Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
  • Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API.



ADDITIONAL FEATURES


  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR: More life-like images through a greater range of luminance levels
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

SPECIFICATIONS


  • AV Inputs: 1x HDMI, 1x VGA, 1x L/R, 1x Display Port, 1x USB-C,
  • AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
  • RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
  • Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
  • RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
  • IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 2-pin terminal for IR pass-thru to HDBaseT Input, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
  • RS-232 Connector: 3-pin phoenix terminal
  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black metal
  • Product Dimensions: 8.27 x 7.20 x 1.75” (210 x 183 x 44.4 mm)
  • Product Weight:
  • Weight: 4.0 lbs / 1.81 kg
  • Packaging Dimensions: 15.16 x 9.10 x 3.94 (385 x 230 x 100 mm)
  • Packaging Weight: 11.0 lbs / 5 kg
